China Top-quality Hot High Pressure Concrete Shot Pump for Sale

Detail produk:

Tempat asal:	Chonqing
Sertifikasi:	ISO9001-2008
Nomor model:	SPB-7

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	1-100 usd
Kemasan rincian:	Paket Polywooden
Waktu pengiriman:	30 hari
Syarat-syarat pembayaran:	T/T, L/C ATAU LAINNYA
Menyediakan kemampuan:	1000 set/tahun

Hubungi sekarang

Detil Deskripsi produk

Kondisi:	Baru

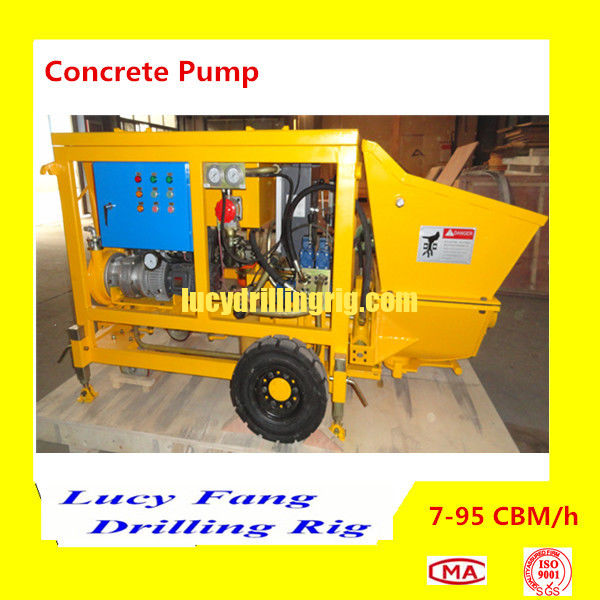

SPB-7 Concrete Shot Pump

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;

Contact person: Lucy Fang; Skype: lucyfang9 ; website: www.lucydrillingrig.com ;

email: lucyfang15@yahoo.com Mobile: +86-13628481197 TEL.:+86-15923510719

Technical Specifications:

Discharge capacity		7m3/h
Conveying distance		horizontal : 120m
		vertical: 50m
Pump Output pressure		5MPa
Concrete slump		6-18cm
Hoper volume		170L
Electric motor		440V/60HZ, 15KW
Hydraulic system pressure		12MPa
Oil tank capacity		90L
Main cylinder dia.		80mm
Working cylinder dia.		110mm
Stroke of working cylinder		550mm
S-valve of distribution		110mm
Conveying hose dia.		51mm
Max. aggregate diameter	spraying	15mm
	pumping	17mm
Accelerator pump	discharge and pressure	17.5-88L/H, 0.6MPa
	power	440V/60Hz/50KW
Weight		1200kg
