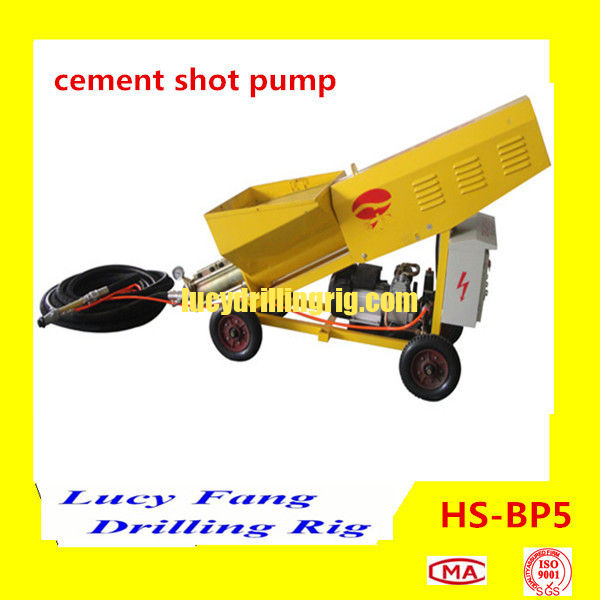

HS-BP5 Concrete Shot Pump
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: ww.lucydrillingrig.com, email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15923510719,15111813754
specifications:
|
Items
|
Unit
|
Model & Reference
|
|
HS-BP5
|
HS-BP5A
|
|
Discharge Capacity
|
L/min
|
75
|
150
|
|
Pressure(Adjustable)
|
Kg/c㎡
|
40
|
20
|
|
Delivery Distance
|
H
|
m
|
50
|
30
|
|
V
|
m
|
30
|
20
|
|
Max.Diameter
|
mm
|
7
|
8
|
|
Power
|
KW
|
7.5
|
7.5
|
|
Air Consumption
|
L/min
|
300-1500
|
300-1500
|
|
Voltage
|
V
|
380
|
380
|
|
Net Weight
|
Kg
|
300
|
300
|
|
Dimension
|
cm
|
180×66×140
|
180×66×140
|
|
Applications
|
Spraying for mortar,EPS concrete,GRC materials and etc.
|
Features:
1 Spraying for mortar,EPS concrete,GRC materials and etc., continuous and stable without pulse
2 Compact, easy to move, easy to operate
3 Super wear-resistant, durable, leak-free, maintenance-free
4 Passive step, easy to regulator
5 Exchange the screw pump each other and easy to achieve different pressure and displacement.
6 Spray evenly to good effect with a special Huas paint spray gun,
7 To ensure quality, improve the environment, improve efficiency
