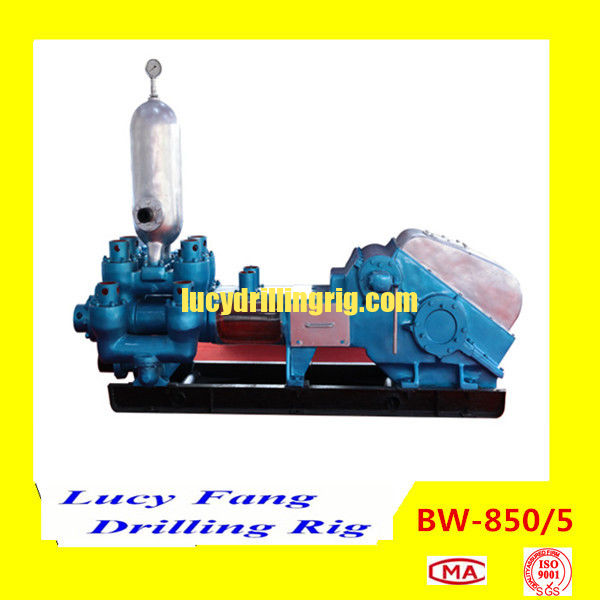

Name: China Powerful BW-850/5 Mud Pump for Water Well Drilling
Brand: Chongqing Spring Tech And Trade Co., Ltd
SKU: BW-850/5
Price: 100.00 USD
Availability: InStock

Rumah Produk Pompa lumpur

China Powerful BW-850/5 Mud Pump for Water Well Drilling

Detail produk:

Tempat asal:	Chongqing
Sertifikasi:	ISO9001-2008
Nomor model:	BW-850/5

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	1-199USD
Kemasan rincian:	Paket Polywooden
Waktu pengiriman:	Penuh
Syarat-syarat pembayaran:	T/t atau l/c atau orang lain
Menyediakan kemampuan:	1000 set/tahun

Hubungi sekarang

Detil Deskripsi produk

Powerful BW-850/5 Mud Pump

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China

Skype: lucyfang9 ; Website: www.lucydrillingrig.com. email: lucyfang15@yahoo.com

M: +86-13628481197 TEL.:+86-15923510719

Type	Horizontal, double cylinder, double Acting Reciprocating Piston Pump
Stroke (mm)	260
Cylinder Bore (mm)	140(850/5A); 130(600/6A),;95(350/8A)
Pump Speed min-1)	66
Discharge (l/min)	850	600	350
Pressure (MPa)	5.0	6.0	8.0
Volume Efficiency (%)	85
Total Efficiency (%)	72
Suction Height (m)
Suction Pipe Inner Dia.(mm)	152
Discharge Pipe Dia.(mm)	64
Driving Power (KW)	YB280M-4 electric motor 90 kW, or 6135T diesel engine
Speed of V-pulley (r/min)	375
Diameter Of V- Pulley (mm)	918
V-belt	C-6300 7 PCS
Dimension (mm)(length×wide ×height)	Pump:301811202050
Weight(kg)	Pump:3100 excluding power unit

Rincian kontak

Chongqing Spring Tech And Trade Co., Ltd

Kontak Person: Ms. Lucy Fang

Tel: 0086--15923510719

Faks: 86--1858026
