Name: China Hot Powerful BW-850/2 Mud Pump for Water Well Drilling
Brand: Chongqing Spring Tech And Trade Co., Ltd
SKU: BW-850/2
Price: 50.00 USD
Availability: InStock

Rumah Produk Pompa lumpur

China Hot Powerful BW-850/2 Mud Pump for Water Well Drilling

Detail produk:

Tempat asal:	Chongqing
Sertifikasi:	ISO9001-2008
Nomor model:	BW-850/2

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	1-100 usd
Kemasan rincian:	Paket Polywooden
Waktu pengiriman:	Penuh
Syarat-syarat pembayaran:	T/t atau l/c atau orang lain
Menyediakan kemampuan:	1000 set/tahun

Hubungi sekarang

Detil Deskripsi produk

Jenis mesin:	Peralatan pengeboran	Bahan:	Baja karbon
Menggunakan:	Pengeboran dengan baik	Jenis:	Pompa lumpur
Jenis pemrosesan:	Penempaan, Pengecoran, Pemesinan

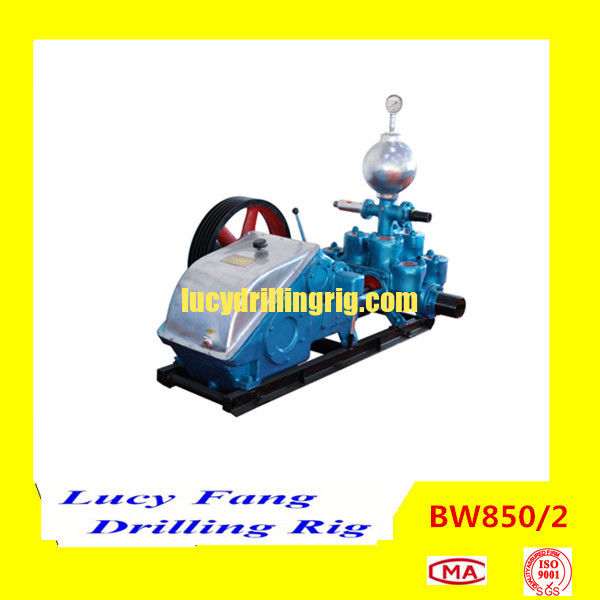

Powerful BW-850/2 Mud Pump

ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China

Skype: lucyfang9 ; website: www.lucydrillingrig.com. email: lucyfang15@yahoo.com

M: +86-13628481197 TEL.:+86-15923510719

Specifications:

Type	Horizontal, double cylinder, double Acting Reciprocating Piston Pump
Stroke (mm)	180
Cylinder Bore (mm)	150
Pump Speed min-1)	82	58
Discharge (l/min)	850	600
Pressure (MPa)	2.0	3.0
Volume Efficiency (%)	85
Total Efficiency (%)	72
Suction Height (m)
Suction Pipe Inner Dia.(mm)	125
Discharge Pipe Dia.(mm)	65
Driving Power (KW)	37
Speed of V-pulley (r/min)	470
Diameter Of V- Pulley (mm)	Φ700*C-5
Dimension (mm)(length×wide ×height)	Pump:200010301400
Weight(kg)	Pump:1500

Rincian kontak

Chongqing Spring Tech And Trade Co., Ltd

Kontak Person: Ms. Lucy Fang

Tel: 0086--15923510719

Faks: 86--1858026
