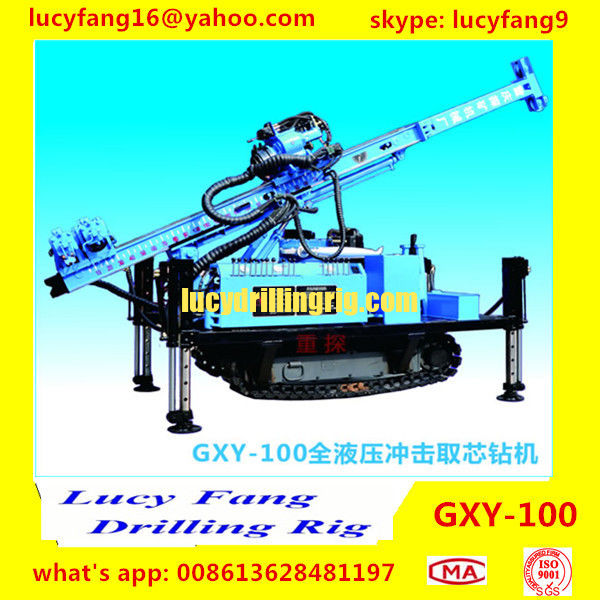

GXY-100 DTH Hammer Core Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9, Website: ww.lucydrillingrig.com, email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15923510719,15111813754
1.General description:
The full hydraulic drilling rig is mainly used for soil investigation of railway, highway, water conservancy, hydropower station, anchor hole, underpinning of deep foundation engineering, water well and pipe-roof drilling, and blasting hole drilling as well.
2.Features:
(1) the drilling machine has the advantages of compact structure, conveniently move and locate ; adopts full hydraulic control, flexible operation, time-saving. Suitable for forward, Reverse Circulation DTH hammer drilling.
(2) the machine with low speed and big torque motor, so that the machine stable performance, reliable, long working life.
(3) the machine has wide applications, strong drilling ability; power head is a through hole structure, high drilling efficiency.
(4) the machine drilling angle range, 0° to 90° .
(5) the machine is suitable for various drilling methods, mainly for the Forward, Reverse Circulation DTH hammer.
GXY-100 Technical Specifications
|
hole diameter (mm):
|
150
|
|
drilling angle (°):
|
0 ～ 90
|
|
theoretical depth:
|
30m~100m
|
|
power head push stroke:
|
2500mm +( chuck rear suspension of )1000mm=3500 mm
|
|
power head output speed (r/min):
|
0 ~ 350r/min
|
|
power head output maximum torque (N · m):
|
4500N.m
|
|
power head stroke (mm):
|
1800
|
|
the power chuck hole:
|
Φ 80mm
|
|
power head maximum feed force / pull force (kN):
|
43/50 (0~44 continuously adjustable)
|
|
The rated pressure of hydraulic (Mpa):
|
18
|
|
diesel models:
|
4100 (diesel engine)
|
|
hoisting capacity:
|
3000Kg
|
|
host size (L*W*H) (mm):
|
4200 x 2000 x 2000
|
