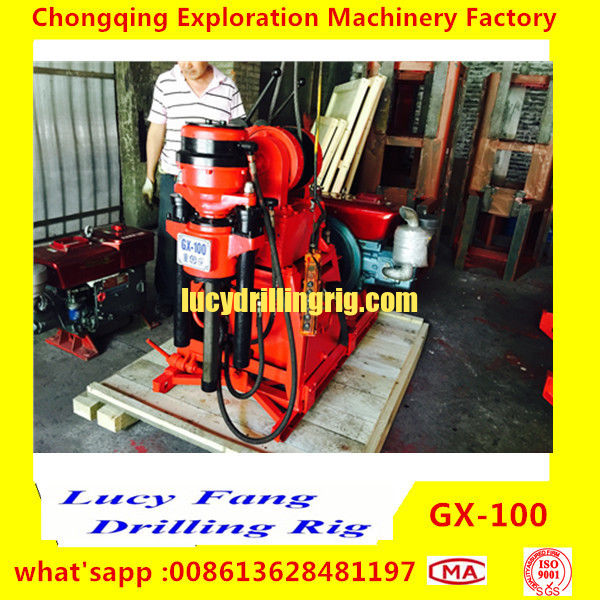

GX-100 Portable Skid Mounted Spindle Type Core Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Contact person: Lucy Fang; Skype: lucyfang9 , Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com; Mobile: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719
Applications:
GX-100 type drilling machine is a kind of hydraulic shallow hole light drilling rig, drilling capacity is 50~100m. This machine is used in railway, highway, bridge and tunnel construction; industrial and civil construction engineering, hydro-power engineering based exploration, and landslide, rock reinforcement anchorage hole and blasting engineering hole drilling. It has small size, compact structure, simple operation, good disintegration performance,and the characteristics of large installed power.
main technical parameters
1.Final hole diameter 150；130；110；91；75 mm
2.Drilling depth 20； 30； 50； 70；100 m
3. Borehole inclination 0～90°
4. Spindle speed 180；430；688 r/min
5.Max torque 583 N·m
6. The maximum Spindle pulling force 30 kN
7. Spindle stroke 400 mm
8.The maximum lift capacity(single rope in the second layer) 10 kN
9.Oil pump: CBW-F310-CFPL Gear oil pump
10. Power unit: electric motor Y160M-4； 11 kW；1460(r/min)
diesel engine S1100； 11 kW；2200(r/min)
11. Overall dimension:(L*W*H): 1360×620×1080 (mm)
12 drill weight(without power machine) : 360 KG
