Name: Chongqing High Quality XY-2B Portable Earth Auger Drilling Machine
Brand: Chongqing Spring Tech And Trade Co., Ltd
SKU: XY-2B
Price: 6,000.00 USD
Availability: InStock

Rumah Produk Rig Pengeboran Inti Berlian

Chongqing High Quality XY-2B Portable Earth Auger Drilling Machine

Detail produk:

Tempat asal:	Chongqing
Sertifikasi:	ISO9001-2008
Nomor model:	XY-2B

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 set
Harga:	1-12000USD/set
Kemasan rincian:	Kotak polikayu
Waktu pengiriman:	Penuh
Syarat-syarat pembayaran:	T/t atau l/c
Menyediakan kemampuan:	1000 set/tahun

Hubungi sekarang

Detil Deskripsi produk

Jenis:	rig spindel	Jenis mesin:	Peralatan pengeboran
Bahan:	Baja karbon	Jenis pemrosesan:	Penempaan, Pengecoran, Pengelasan
Menggunakan:	Penambangan Bijih	Warna:	Merah
Berat:	1200 kg tanpa unit daya	Dimensi:	22209001880 mm
Torsi:	3300 nm	Kecepatan putar:	57; 99; 157: 217; 270; 470; 742; 1024
Kontak person:	Lucy Fang	Skype:	Lucyfang9

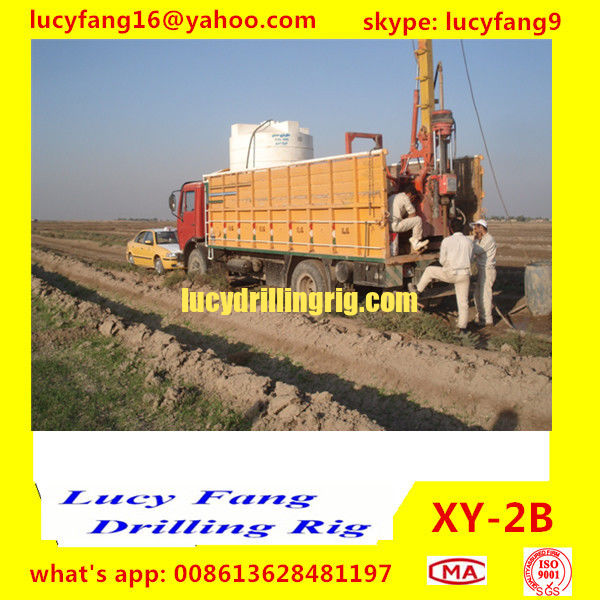

                                                        XY-2B Portable Core Drilling Rig

                          ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com email: lucyfang15@yahoo.com;
                                   M: +86-13628481197 TEL.:+86-15111813754 ; +86-15923510719

Applications:

XY-2B drill rig derived from XY-2 drill rig, it not only keeps all performances of XY-2 drill, but also adds spindle inner hole diameter to 96mm. It is mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in geotechnical, hydro-geological, water well and mini-pile grouting hole drilling.It is especially suitable for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with XY-2 drill in all design but hydraulic chuck and rotary head modified.

Technical Specifications

Drilling capacity (m)	AW rod	530 m
	BW rod	420 m
	NW rod	320 m
	AQ rod	565 m
	BQ rod	460 m
	NQ rod	350 m
	HQ rod	250-300 m
	Φ73 rod	100 m
	Φ60 rod	200 m
	Φ50 rod	380 m
	Φ42 rod	530 m
Spindle speed(r/min)	Forward	57;99;157;217;270;470;742;1024
Spindle speed(r/min)	Reverse	45;212
Max torque(Nm)		3300
Angle range		0-90°
Spindle max pulling/pushing force(KN)		60/45
Spindle stroke (mm)		560
Hoist max lift capacity with single rope (KN)		30
Spindle inner dia. (mm)		96
Oil pump		CBK1020/8
Power unit	Electric motor	Y180L-4,22Kw
Power unit	Diesel engine	395K2,19.85Kw
Overall dimension(LWH) mm		2220×900×1880
Drill weight(excluding power)(kg)		1200

Chongqing High Quality XY-2B Portable Earth Auger Drilling Machine
