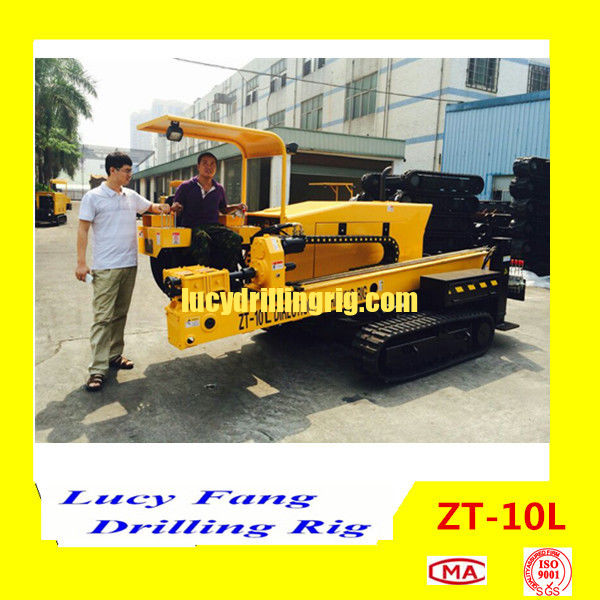

ZT-10L Horizontal Directional Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com, email: lucyfang16@yahoo.com;
M: +86-13628481197 TEL.:+86-15923510719,15111813754 FAX:0086-23-65311383
General description:
ZL-10L horizontal directional drilling rig of Pipe laying is a crawler mounted full hydraulic drilling rig, it has compact size,, light weight, multi-function. And a complete set of drill rig with accessories can be loaded easily on a 5T truck to be transported, mobile convenience. Power pack adopts a totally enclosed type, low noise, convenient for construction at night. The diesel engine and the main hydraulic components, pipe fittings are imported or from joint venture products, reliable performance. A hydraulic clamping device, it is convenient to tighten or un-tighten drilling tools.
Technical parameters:
Max. output torque: 2400 N.m
Output speed: 0~100rpm
Drawback force: 100kN
Feeding force: 50 kN
Feed stroke: 2200mm
Drill pipe size:φ50*2500mm
Mud pump:
Max. displacement: 200L/min
Max. Pressure: 8Mpa
Power: Yuchai 50kw/2200rpm
Host weight: 4200KG:
Dimensions: 4100*1800*1500*
