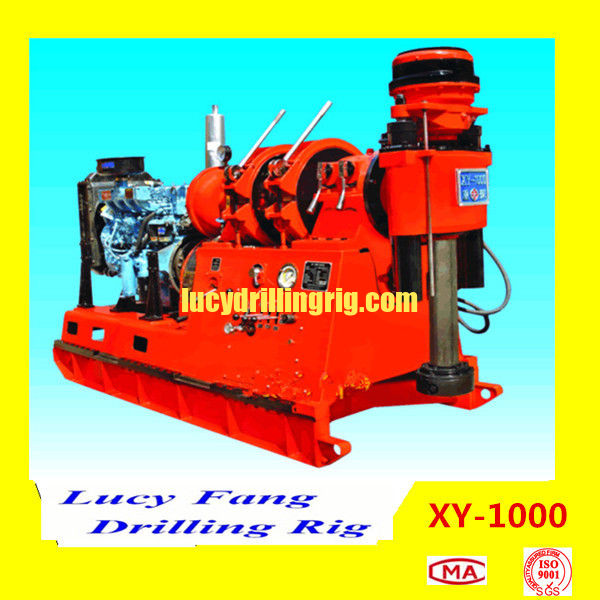

XY-1000 Core Drilling Machine Of Spindle Type
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com; 1317425185@qq.com
M.: +86-13628481197 TEL.:+86-15111813754, 15923510719
Applications & Features:
XY-1000 spindle type of core drilling machine is brand new products which is developed and designed newly based on current thousand meters series of drilling machine.
It is suitable for drilling large dia. hole and small dia. hole core drilling with diamond bit and carbide bit, also suitable for engineering geology drilling, hydrogeology drilling, water well drilling and large dia. pile hole drilling. It has features of reasonable arrangement, good quality, light weight, big capability, wide performance and good exchangeability etc.
Main Specifications
Drilling depth (m) : 4500
Hoist lift speed with single rope (the third layer)(m/s) : 0.69; 1.27; 1.81; 2.64
Hoist wire rope dia. and capacity (m): Ф17.5(170kg/cm2)wire rope capacity 110 m
Ф18.5(170kg/cm2)wire rope capacity ; 90 m
Workable speed of water brake (r/min): 700- 1800
Balance speed of water brake(single rope)/balance load(single rope): 3-8m/s/45kN
Hydraulic system (32+12)L/min twin-gear pump,pressure:80kg/cm2
Driving stem Hexagonal kelly: Ф89×79×6000 mm
Power unit Electric motor Y225-4 : 37Kw 1480r/min
Diesel engine R4105G54 : 42Kw 1500r/min
Weight (excluding power unit)(kg) ; 2180
Max. detachable subassembly (kg) ; 320
Overal dimension (L×W×H)(mm) ;2920×1100×1840
