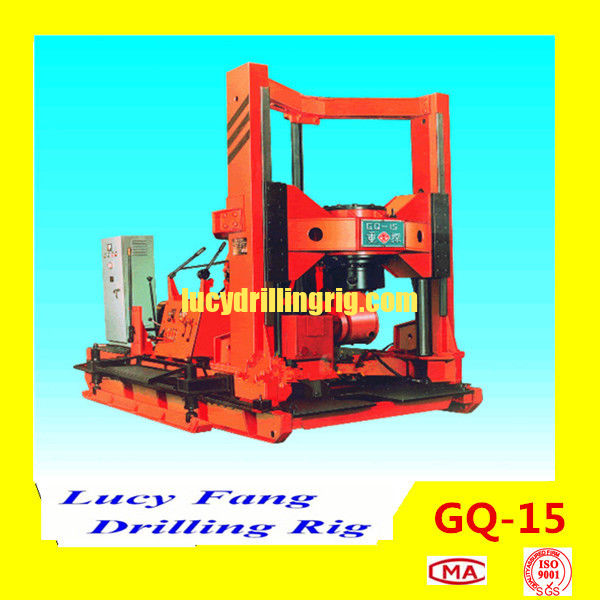

GQ-15 FOUNDATION ENGINEERING DRILLING MACHINE
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com
M: +86-13628481197, 0086-15111813754
1. APPLICATIONS:
GQ-15 engineering drilling machine is newly designed special for large diameter pile hole drilling, can use forward-circulation and reverse circulation drilling methods mainly used in drilling large diameter pile for building, skyscraper, dam, harbor, bridge etc. and drilling large diameter well.
2. FEATURES:
◆ Big torque, lightweight and compact structure in compare with same kind machine.
◆ Mast, top-drive head move down or up along with, strength and rigidity.
◆ Top-drive head has large inner diameter (182×182mm).
◆ Reverse-circulation drilling if equipped with necessary equipment as well as forward-circulation drilling.
◆ Strength, five forward speeds and one reverse speed, suitable for drilling a variety of rock, easy to handle accidents happened in hole.
◆ Top-drive head is equipped with hand-powered chuck, square driving stem, large stroke, drilling efficiently.
◆ Hydraulic feed, big pull and push force easy to make pressure and depression drilling.
◆ Hydraulic retracting stroke is 1150mm, easy to lower and hoist drilling tools.
◆ Walking device, easy to move and find accurate hole position.
◆ Reasonable arrangement, easy to operate, smooth.
◆ Can be equipped with special derrick if user needs.
Technical Specifications
|
hole dia (mm)
|
600-1500
|
|
drilling capacity (m)
|
100-50
|
|
top drive head speeds(r/min)
|
forward
|
13.5;22.8;40.19;63.9;98.5
|
|
reverse
|
12.85
|
|
max torque (N.m)
|
22100
|
|
top drive head inner hole (mm)
|
182182
|
|
top drive head max pull force(KN)
|
27
|
|
top drive head max push force(KN)
|
98.3
|
|
top drive head stroke(mm)
|
1000
|
|
hoist lift capacity with singlerope(KN)
|
48
|
|
retracting distance(mm)
|
790
|
|
oil pump
|
SCB32/12 twin-gear oil pump
|
|
power unit
|
electric motor
|
Y225S-4 37KW
|
|
diesel engine
|
2135AG 50Hp
|
|
overall dimensions(L*W*H)mm
|
3620×1880×2704
|
|
drill body weight(excluding power)kg
|
5900
|
