XY-2F DRILLING MACHINE
CHONGQING EXPLORATION MACHINERY FACTORY
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 , Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com
M.: +86-13628481197 TEL.:+86-23-65311478 Fax.:+86-23-6531138
Applications and Features:

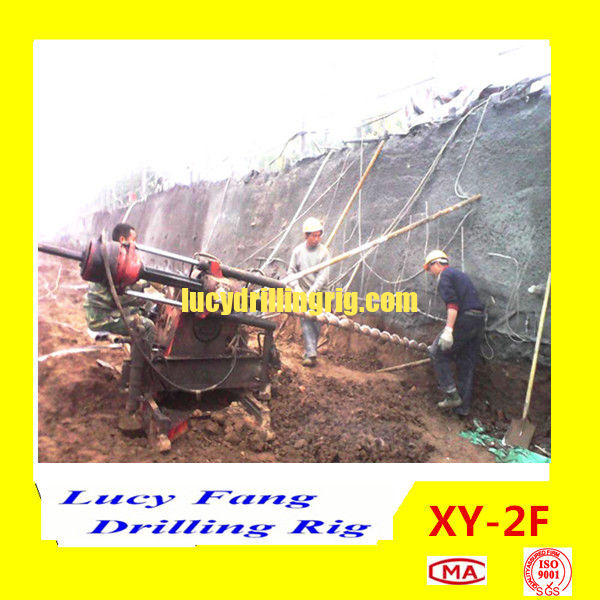

XY-2F core drill rig is derived from XY-2 drill rig, it can move conveniently because adding walking device base on XY-2 rig. It is small and light-weighted, mainly used in shallow and medium hole diamond and tungsten carbide bit core drilling, can also be used in soil anchoring hole, anchoring bar and engineering geological, hydro-geological, water well and pile grouting hole drilling.
XY-2F is light weight, compact, good quality, powerful, wide performance, good versality.
Technical Specifications:
|
Drilling capacity(m)
|
73 rod
|
100
|
|
60 rod
|
320
|
|
50 rod
|
380
|
|
42 rod
|
530
|
|
AQ wire line rod
|
565
|
|
BQ wire line rod
|
460
|
|
NQ wire line rod
|
380
|
|
Spindle speed(r/min)
|
Forward
|
65;114;180;248;310;538;849;1172
|
|
Reverse
|
51;242
|
|
Max torque (Nm)
|
2900
|
|
Angle range
|
0-90°
|
|
spindle max pull force(KN)
|
60
|
|
Spindle stroke (mm)
|
600
|
|
Hoist max life capacity with single rope (KN)
|
30
|
|
stroke of walking device
|
450mm/stroke
|
|
Spindle inner dia (mm)
|
Φ76
|
|
Oil pump
|
CBK1020/8Twin-geal oil pump
|
|
Power unit
|
Electric motor
|
Y180L-4,22Kw
|
|
Diesel engine
|
395K2,19.85Kw
|
|
Dimension (mm)
|
2150×900×1690
|
|
Drill body weight (excluding power)(kg)
|
950
|
