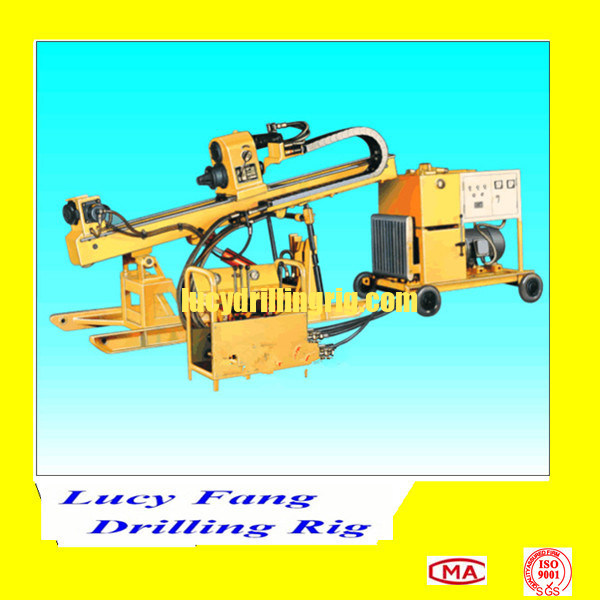

MGY-80 Hydraulic Micropile And Anchoring Drilling Rig
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Contact person: Lucy Fang; Skype: lucyfang9 ; website: www.lucydrillingrig.com ;
email: lucyfang15@yahoo.com Mobile: +86-13628481197 TEL.:+86-15923510719
FEATURES:
● Use hydraulic transmission, the body is separated from power pack, operation desk separately mounted, to lighten the drill body.
● Main hydraulic components such as oil motor, oil pump, quick joint so on are imported from US to make the drilling machine stable and reliable.
● Equipped with hydraulic holder and hand powered unscrewer, to untighen the drill rod easily.
● Good detachability, easy moving, special for high place work; simple design, compact arrangement, easy operation.
● The top-head has large torque, wide range of speed, big pull force.
Technical Specifications
|
Drilling capacity
|
Hole dia Φ110mm,depth 100m
|
|
Hole dia Φ200mm,depth 80m
|
|
Type of hydraulic power pack
|
Electric motor variable oil pump
|
|
Hydraulic system rated pressure(Mpa)
|
20
|
|
Top-head speeds(r/min)
|
Series I
|
0---140
|
|
Series II
|
0---
|
|
Top-head torque (N.m)
|
Series I
|
1400
|
|
Series II
|
3500
|
|
Lift speed(m/s)
|
0—-0.12
|
|
Feed speed (m/s)
|
0---0.19
|
|
Max pull force(N)
|
5000
|
|
Max feed force (N)
|
34000
|
|
Max stroke (mm)
|
1800
|
|
Drilling angle range(°)
|
-10---90
|
|
Overal dimension of drill body(L*W*H)(mm)/Weight(Kg)
|
3270*1100*1425/110
|
|
Dimension of power pack(L*W*H)mm/weight(kg)
|
1555*1255*1335/500
|
|
Dimension of operation desk(L*W*H)mm/weight(kg)
|
700*380*750*1100
|
|
Power unit(electric motor)
|
model
|
Y1802M-2
|
|
Power(kw)
|
22
|
|
Speed(r/min)
|
2950
|
