China Hot XY-2 Portable Skid Mounted Mini-pile Grouting Hole Drilling Rig

China Hot XY-2 Portable Skid Mounted Mini-pile Grouting Hole Drilling Rig

    • China Hot XY-2 Portable Skid Mounted Mini-pile Grouting Hole Drilling Rig
    • China Hot XY-2 Portable Skid Mounted Mini-pile Grouting Hole Drilling Rig
    • China Hot XY-2 Portable Skid Mounted Mini-pile Grouting Hole Drilling Rig

    Detail produk:

    Tempat asal: Chongqing
    Sertifikasi: ISO9001-2008
    Nomor model: Xy-2

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1 set
    Harga: 1-1000 usd
    Kemasan rincian: Paket Polywooden
    Waktu pengiriman: Penuh
    Syarat-syarat pembayaran: T/t atau l/c atau orang lain
    Menyediakan kemampuan: 1000 set/tahun
    Hubungi sekarang
    Detil Deskripsi produk

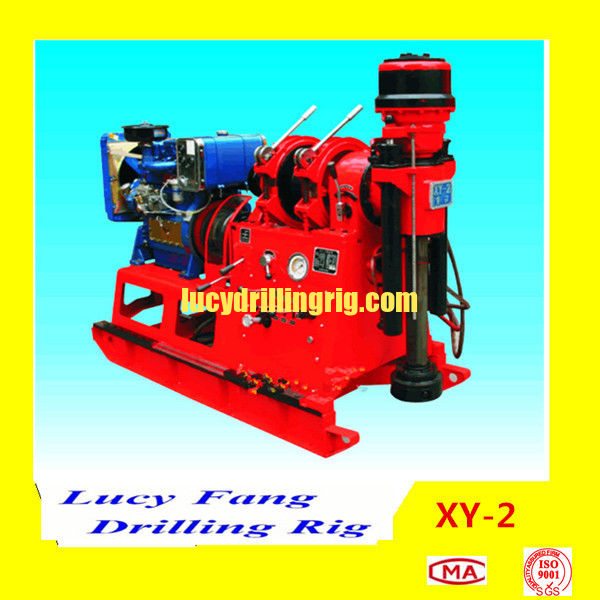

     XY-2 Skid Mounted Spindle Type Core Drilling Rig

    ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing  China;

    Skype: lucyfang9 , Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com

    M.: +86-13628481197 TEL.:+86-23-65311478 Fax.:+86-23-65311383



    Applications:

           XY-2 hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in geotechnical, hydro-geological, water well and mini-pile grouting hole drilling.





    Technical Specifications


    Drilling capacity(m)

    AW rod

    530 m

    BW rod

    420 m

    NW rod

    320 m

    AQ rod

    565 m

    BQ rod

    460 m

    NQ rod

    350 m

    HQ rod

    250 m

    Φ73 rod

    100 m

    Φ60 rod

    200 m

    Φ50rod

    380 m

    Φ42 rod

    530 m


    Spindle speed(r/min)


    Forward

    65;114;180;248;
    310;538;849;1172


    Reverse

    51;242


    Max torque (Nm)

    2760


    Angle reange

    0-90°


    Spindle max pull force(KN)

    60


    Spindle stroke (mm)

    600


    Hoist max life capacity with single rope (KN)

    30


    Spindle inner dia (mm)

    76


    Oil pump

    SCB32/12 or CBK1020/8


    Power unit


    Electric motor

    Y180L-4,22Kw


    Diesel engine

    395K2,19.85Kw


    Inner dia of spindle (mm)

    2150×900×1690


    Drill body weight (excluding power)(kg)

    950
