Multi-Electrode Resistivity Survey System
ADD: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China;
Skype: lucyfang9 ; Website: www.lucydrillingrig.com, email: lucyfang15@yahoo.com;
M: +86-13628481197 TEL.:+86-15923510719,15111813754
Main Application
Coal mining gobs, caves of Custer area, geological disasters survey like landslides other geological disasters.
High resolution engineering geological exploration like factory foundations, highways, bridges, railways, civil engineering, hydrology, engineering, environmental.
For landslides and other geological disaster exploration.
Metal and non-metallic mineral resources exploration and geothermal exploration.
System Components
One DAZ-6A multi-functional DC resistivity instrument as the survey and control unit in the system

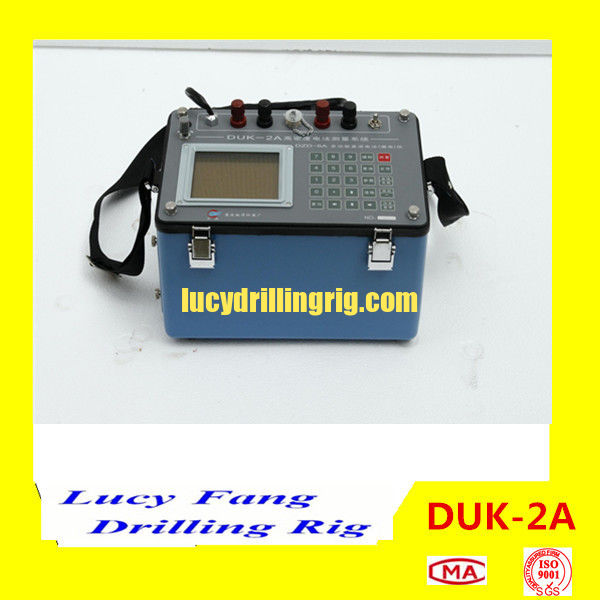

DUK-2A type 60-channel or 120-channel multiplex electrode switch manufactured by our factory
cables, electrodes and other related accessories
Features and Functions
Observing Apparent Resistivity and Apparent Polarizability at the same time
Mainframe can process common electric operation, maintain all the function of DZD-6A Multi-function DC Instruments.
Main Technical Specifications
|
Conversion Electrodes
|
60channels or 120 channels
|
|
Operating modes
|
LCD display, man-machine dialogue operation
|
|
Maximum Allowable Current
|
2A
|
|
Maximum Withstand Voltage
|
500V
|
|
Insulating Property
|
500MΩ
|
|
Working Temperature
|
-10℃~ +50℃, 95%Rh
|
|
Volume
|
365×269.5×169mm (60 channels), 342×211×258mm (120 channels)
|
|
Weight
|
7 kg (60 channels), 8.5kg (120 channels)
|
