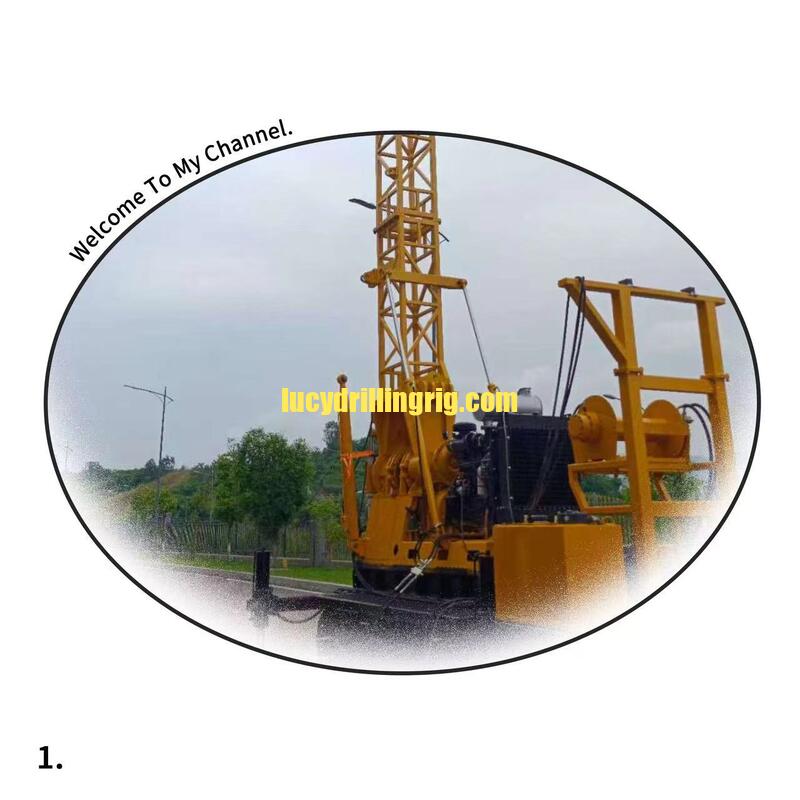

China Multi-function Soil Investigation Geotechnical Drilling Rig with track mounted and wireline winch

Core Drilling Rig With Wireline System

I. General
There are more problems such as shallow holes, small hole spacing and high relocation frequency for drilling engineering. Manual dismounting and handling need high labor intensity and increase auxiliary time for drilling so as to reduce construction efficiency. In order to solve these problems, an integrated and modular drilling rig should be designed to be suitable for frequent site relocation and rapid movement. It should be able to solve problems in the construction, improve construction quality and efficiency of drilling, achieve total relocation of drilling equipments and reduce labor intensity.
The drilling rig is a self-propelled core drilling rig integrated with crawler, rig, mud pump, console stand and other devices on the basis of original drilling rig.
This drilling rig is integrated with other mechanical devices on the basis of the original drilling rig as designed, so this operating manual is prepared to describe usage of integrated additional devices.


II. Technical Parameters
1. Power machines (optional)
Diesel engine:30 KW  1500 r / min;  electric motor: 22KW  1470 r / min
2. Mainframe (for the other parameters, please refer to the operating manual for XY-2B drilling rig)
Retraction stroke: 275mm
Mobile cylinder stroke: 460 mm
2. Crawler
Crawler loading capacity: 5 T
Maximum travel speed: 1 km / h
Climbing capacity: not greater than 25 °
Contact area pressure ratio: 0.042MPa
3. Rig
1) Rig height (including crawler): 8.59m
2) Lifting load of rig hook: 29.4 kN
3) Maximum static load of crown block beam: 58.8 kN
4) Number of crown block pulley: 2
5) Maximum load of high altitude platform: 0.85 kN
6) Tilt angle of rig (inclined hole): 90 ° ~ 70 °
7) Rigs weight: about 450 kg
4. Mud pump
5. Overall dimensions
Overall dimensions of the rig in a horizontal position (transport state):
L × W × H 4480 × 2150 × 3058
6. Weight
Total weight: approximately 5,800 kg (including hydraulic wireline winch)
