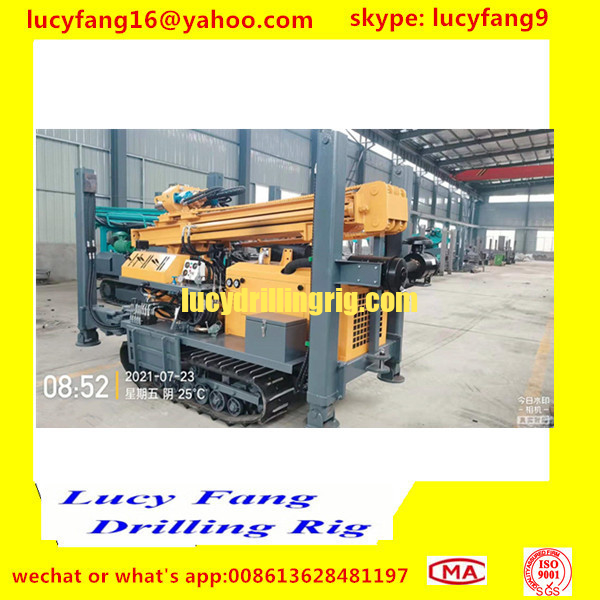

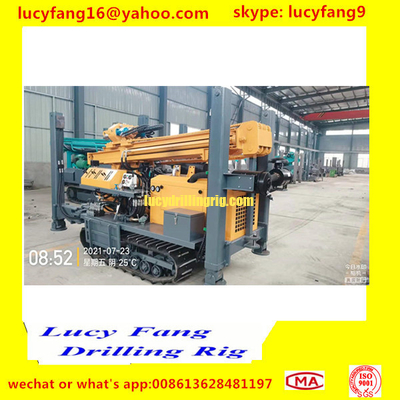

Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling
    • Track Mounted High Drilling Efficiency Water Well Drilling Rig with DTH hammer Drilling

    Detail produk:

    Tempat asal: Cina
    Sertifikasi: ISO901,CE

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1
    Kemasan rincian: 3950*1630*2250 Pengepakan reguler
    Syarat-syarat pembayaran: T/T, L/C, D/A, D/P, Western Union
    Menyediakan kemampuan: 1+Set+
    Hubungi sekarang
    Detil Deskripsi produk
    Jenis: rig pengeboran sumur air Typ mesin: Tipe crawler
    Bahan: Komponen baja, karet, hidrolik Pengolahan: memotong, menempa, casting
    Menggunakan: Pengeboran sumur air, pengeboran lubang tumpukan Warna: Kuning
    Berat: 4.5t Dimensi: 3950mm*1630mm*2250mm
    Torsi: 3200-4500 nm Kecepatan putar: 45-70 rpm
    Hubungi Pers: Lucy Fang Whatsapp: 008615923510719



                                                    Sweies of water well drilling rig



    Application field:



    Main USES and teatures of products:

       series well drilling rig is a kind of light, high efficient and muiti-function crawler-type full hydraulic drill, has advanced structure, easy to use, configuration standardization, short assistant time, fast drilling rock , low failure rate characteristics, widely used om drilling wells, wells and other holes engineering, espcially suitable for urban construcion in zonetie source heat pump air conditioning hole drilling. The series of drilling rigs uses compressed-air DTH to drill at high rates of penetration into rock in the Prinell f 620 range.



      Technology specification

                                                            180 Water Well Drilling Rig
    The weight        4.5 Drill pipe diamater Ø76 Ø89
    The hole diamater (mm)      140-254 Drill pipe length   1.5m  2.0m  2.6m
    Drilling depth (m)   180 Rig lifting force (f)   12
    One-time advance length (m)   3.3 Rapid rise speed (m/min)   20
    Walking speed (km/h)   2.5  Fast feeding speed (m/min)   48
    Climbing angles (Max) 30 Width of loading (m) 2.4
    Equipped capadtor (kw) 55 Hoisting force of winch (T)
    Using air pressure (MPA) 1.7-2.5 Swing torque (N.m) 3200-4500
    Air consumption (m3/min) 17-23 Dimension (mm) 3950x1630x2250
    Swing speed (mm) 46-70 equipped with hammer Medlum and high wind pressure series
    The pentration efficiency (m/h) 10-35 High leg stoke (m) 1.4
    The engine brand    Quanchai engine
