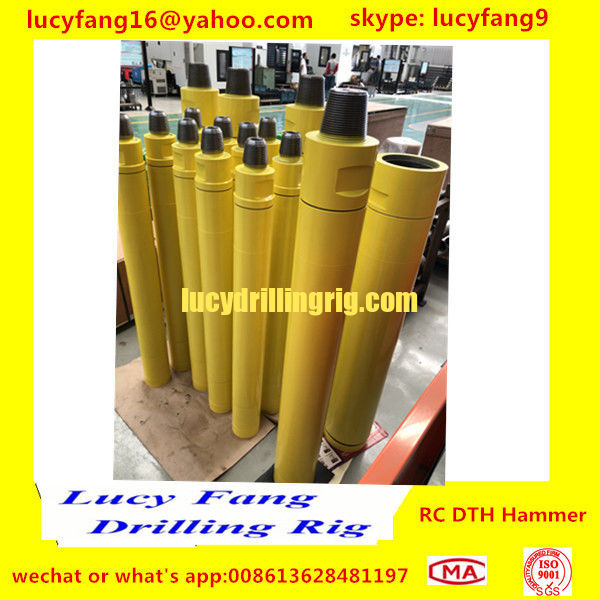

China Hot RC Reverse Circulation DTH Hammer And Hammer Bit

China Hot RC Reverse Circulation DTH Hammer And Hammer Bit

    • China Hot RC Reverse Circulation DTH Hammer And Hammer Bit
    • China Hot RC Reverse Circulation DTH Hammer And Hammer Bit
    • China Hot RC Reverse Circulation DTH Hammer And Hammer Bit
    • China Hot RC Reverse Circulation DTH Hammer And Hammer Bit
    • China Hot RC Reverse Circulation DTH Hammer And Hammer Bit
    • China Hot RC Reverse Circulation DTH Hammer And Hammer Bit

    Detail produk:

    Tempat asal: Cina
    Sertifikasi: ISO9001-2008
    Nomor model: semua ukuran

    Syarat-syarat pembayaran & pengiriman:

    Kuantitas min Order: 1
    Harga: USD1-10000
    Kemasan rincian: Kotak polikayu
    Menyediakan kemampuan: 500 pcs per bulan
    Hubungi sekarang
    Detil Deskripsi produk

                           RC Reverse Circulation Donw-the-hole Hammer And Hammer Bit



                              ADD.: NO.1 Kuaileli, Xiaolongkan Street, Shapingba District, Chongqing China.

                              Website: www.lucydrillingrig.com; Email: lucyfang16@yahoo.com, lucyfang15@yahoo.com

                              Wechat and what's app: 008613628481197, QQ: 843683632

                              Phone number: +8613628481197, +8615923510719





          The DTH hammer flushes cuttings out of the hole on the outside of the hammer, while the RC hammer collects all cuttings through the centre of the hammer

    name CSTF335 CSTF345 CSTF355 CSTF365 CSTF385 CSTF3105 CCSTF3125
    OD(mm) Ø85 Ø105 Ø124 Ø154 Ø190 Ø245 Ø270
    length(mm) 1143 1281 1292 1345 1578 1440 1430
    center hole dia.(mm) Ø33 Ø36 Ø36 Ø61 Ø61 Ø75 Ø85
    working pressure(MPa) 0.7~2.1 0.7~2.1 0.8~2.1 0.8~2.1 0.8~2.1 0.8~2.4 0.8~2.4
    air consumption(m³/min) 4.2~11.7 5.7~14.2  6.5~19.3  9~18  12~30.8  15~34  20~37.8
    impacting frequency(times/min) >=800 >=800 810~1200 600~1100 660~1208 600~1230 600~1150
    thread of rear sub

    API

    2-3/8"Box

    API

    2-7/8"Box

    		 T91-3Box

    API

    4-1/2"Box

    		 API4-1/2" Box

    API

    4-1/2“Box

    API

    4-1/2" Box
    drilling hole dia.(mm) Ø95 ~Ø105 Ø115~Ø130 Ø130~Ø155 Ø160~216 Ø203~Ø254 Ø254~Ø305 Ø311~Ø381





    China Hot RC Reverse Circulation DTH Hammer And Hammer Bit



    China Hot RC Reverse Circulation DTH Hammer And Hammer Bit

    China Hot RC Reverse Circulation DTH Hammer And Hammer Bit

    China Hot RC Reverse Circulation DTH Hammer And Hammer Bit

    China Hot RC Reverse Circulation DTH Hammer And Hammer Bit

    China Hot RC Reverse Circulation DTH Hammer And Hammer Bit
